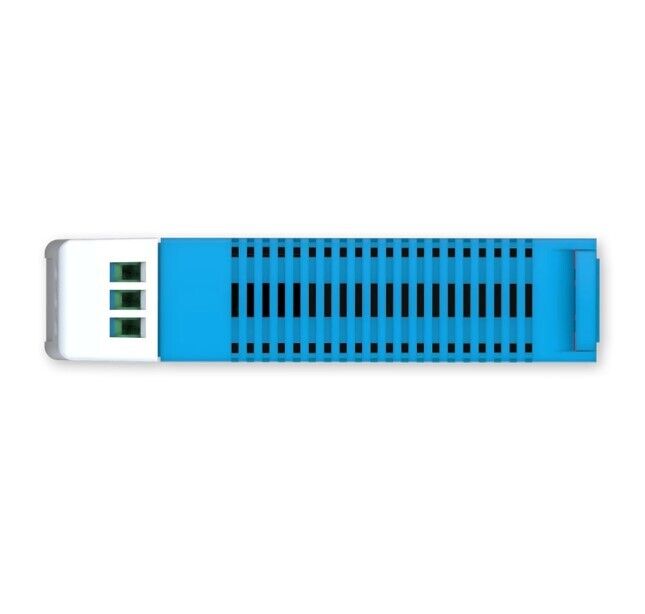

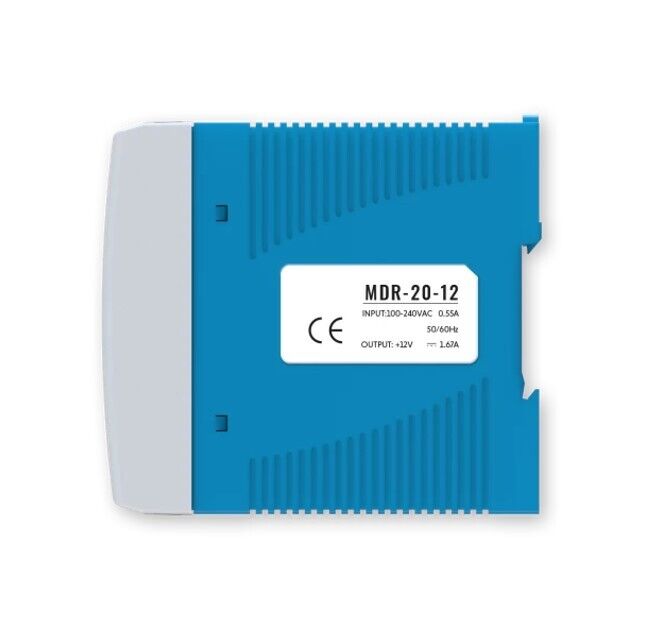

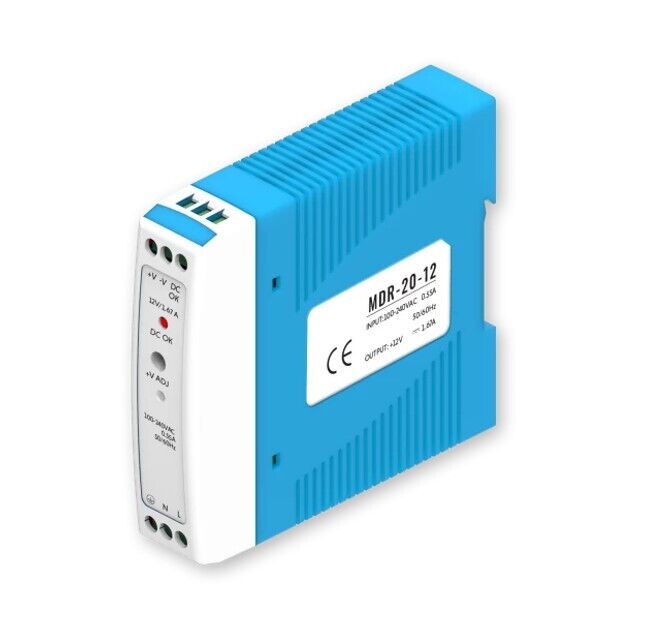

Teltonika DIN RAIL POWER SUPPLY, 20W

SKU: Leader-NHT-PR3PDNP0

Teltonika DIN RAIL POWER SUPPLY, 20W

SKU: Leader-NHT-PR3PDNP0

$68.49
RRP $78.75
SAVE $10.26
  • 5+ in Stock
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

Teltonika DIN RAIL POWER SUPPLY

PARAMETER

  • Single output power: 20 W
  • Input voltage range: 100-240 VAC 50/60 Hz
  • DC output voltage: 12 V
  • DC output current: 0-1.67 A
  • Output ripple and noise: 120 mVp-p
  • Line regulation: ±1%
  • Load regulation: ±1%
  • Efficiency: C
  • Adjustable range for DC voltage: ±1%
  • Test standard:
    EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
    EN55022:2010
    EN61000-3-2:2014
    EN61000-3-3:2013
    EN55024:2010/A1:2015
  • Inrush current: Cold start current 20 A/ 115 VAC; 40 A/ 230 VAC
  • Overload protection: 105 %-160 % cut off the output, automatic recovery
  • Over voltage protection: 120 % - 140 % shut down O/P voltage, off/on cycle required for recovery
  • Setup, rise, hold up time: 500 ms; 30 ms/230 VAC at full load; 1000 ms; 30 ms/ 115 VAC at full load
  • Withstand voltage: I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute
  • Isolation resistance: I/P-O/P I/P-FG O/P-FG: 500 VDC/1000 MO
  • Working temperature: -10 °C - +50 °C
  • Mounting options: 35 mm DIN Rail
  • Dimensions: 22.5 x 90 x 100 mm
  • Weight: 19 g
