Teltonika Combo Quad Mobile/Gnss Roof Sma Antenna

SKU: Leader-NHT-PR1KCL28

Teltonika Combo Quad Mobile/Gnss Roof Sma Antenna

SKU: Leader-NHT-PR1KCL28

$170.89
RRP $190.00
SAVE $19.11
  • 5+ in Stock
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

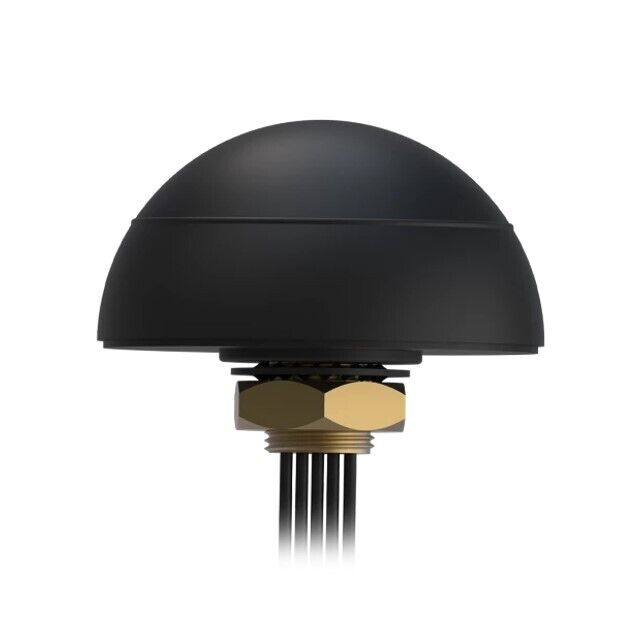

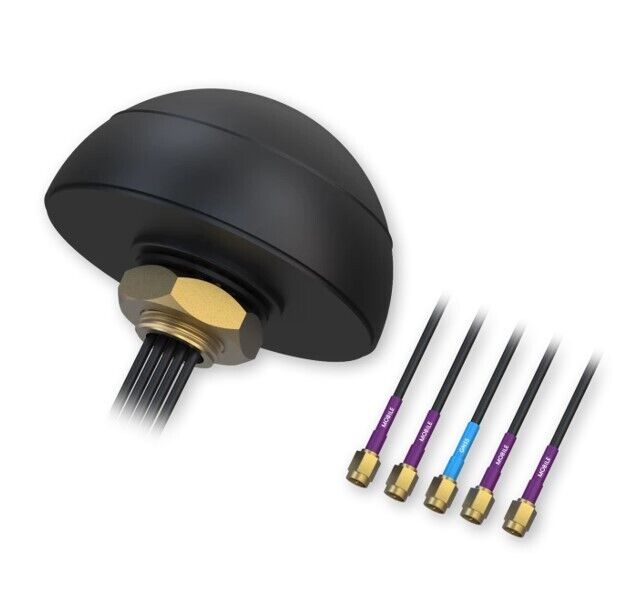

Teltonika COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA

TECHNICAL DATA

GNSS ANTENNA

  • Frequency Range: 1575.42 MHz
  • Polarization: RHCP
  • Impedance: 50
  • LNA Gain: 28 ±2 dB
  • Supply Voltage: 3-5 VDC
  • Current Consumption: < 15 mA
  • V.S.W.R: <2.0
  • Connector: SMA Male

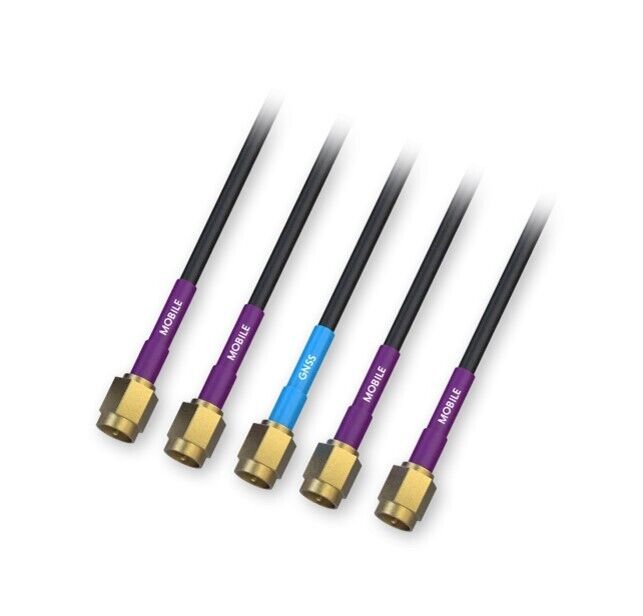

  • Cable: 1 x RG174, 3000 mm

LTE MIMO ANTENNA

  • Frequency range: 698-960/1710-2690 MHz
  • Polarization: Linear
  • Impedance: 50 Ω
  • Gain: 3 dBi
  • V.S.W.R: < 3.0
  • Connector: SMA Male
  • Cable: 4 x RG174, 3000 mm

MECHANICAL

  • Radome material: ABS
  • Radome ingress protection rating: IP65
  • Mounting method: Screw
  • Operating temperature: -40 °C to +85 °C
  • Operating relative humidity: < 95 %
  • RoHS compliant: Yes
  • Weight: 540 g
