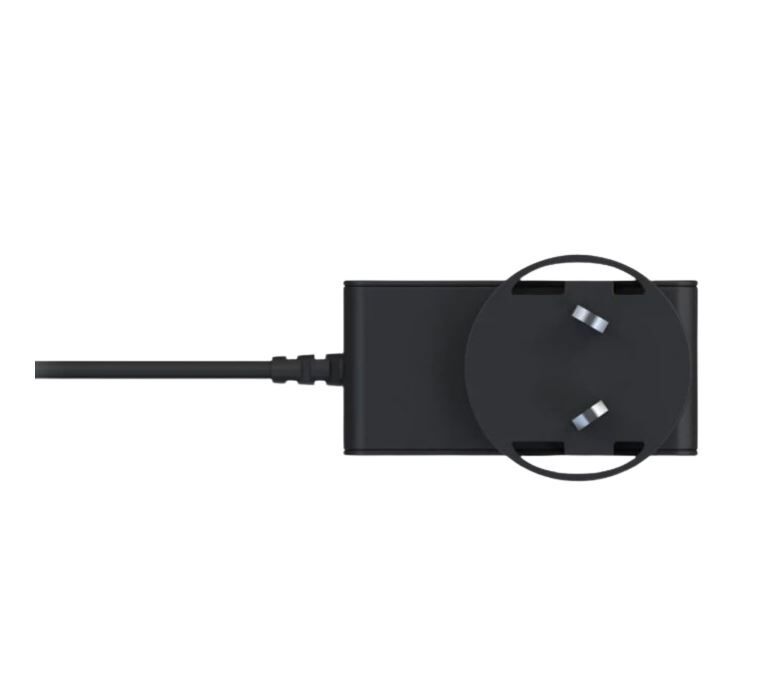

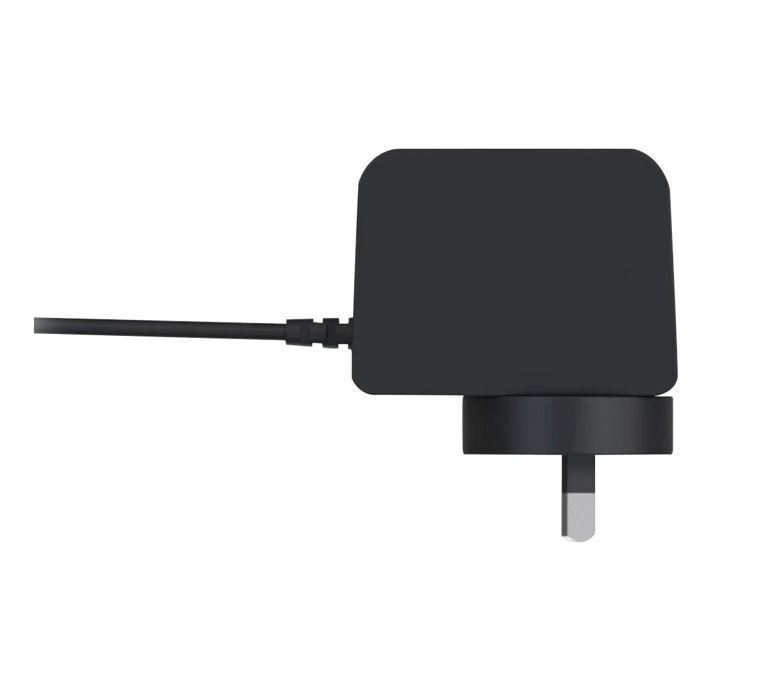

Teltonika Au Power Supply, 9w

SKU: Leader-NHT-PR3PUAU3

Teltonika Au Power Supply, 9w

SKU: Leader-NHT-PR3PUAU3

$23.11
RRP $25.00
SAVE $1.89
  • check icon In Stock
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

Teltonika AU POWER SUPPLY, 9W

TECHNICAL DATA

GENERAL

  • Input voltage: 100 - 240 VAC
  • Input frequency: 50/60 Hz
  • Input current: 0.45 A
  • Input connector: AU (Type 1)
  • Output voltage: 9 VDC
  • Output current: 1.0 A
  • Output connector: 4pin, 3 mm pitch
  • Weight: 80 g

ADDITIONAL

  • Input voltage absolute maximum: 90-264 VAC
  • Input frequency absolute maximum: 47-63 Hz
  • Inrush currect: 60 A
  • Output voltage absolute maximum: 8.55 9.45 VDC
  • Short circuit protection: YES
  • HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
  • MTBF: 30000 h
  • PSU efficiency standard: DOE Level VI
  • Certification:
    Safety: AS/NZS 62368-1:2018, AS/NZS 3112: 2017, IEC 62368-1:2014/A11:2017 (CB Scheme)
    EMC: EN 55032:2015, EN55035:2017,IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, EN 61347-1:2015, EN 61347-2-13:2014/A1:2017, EN 62493:2015
