DESCRIPTION

Simplecom SA536 USB to M.2 and SATA 2-IN-1 Adapter for 2.5"/3.5" HDD & NVMe/SATA M.2 SSD with Power Supply USB 3.2 Gen2 10Gbps

Features

• 2-IN-1 USB adapter with SATA and M.2 sockets
• Supports NVMe and SATA M.2 SSD

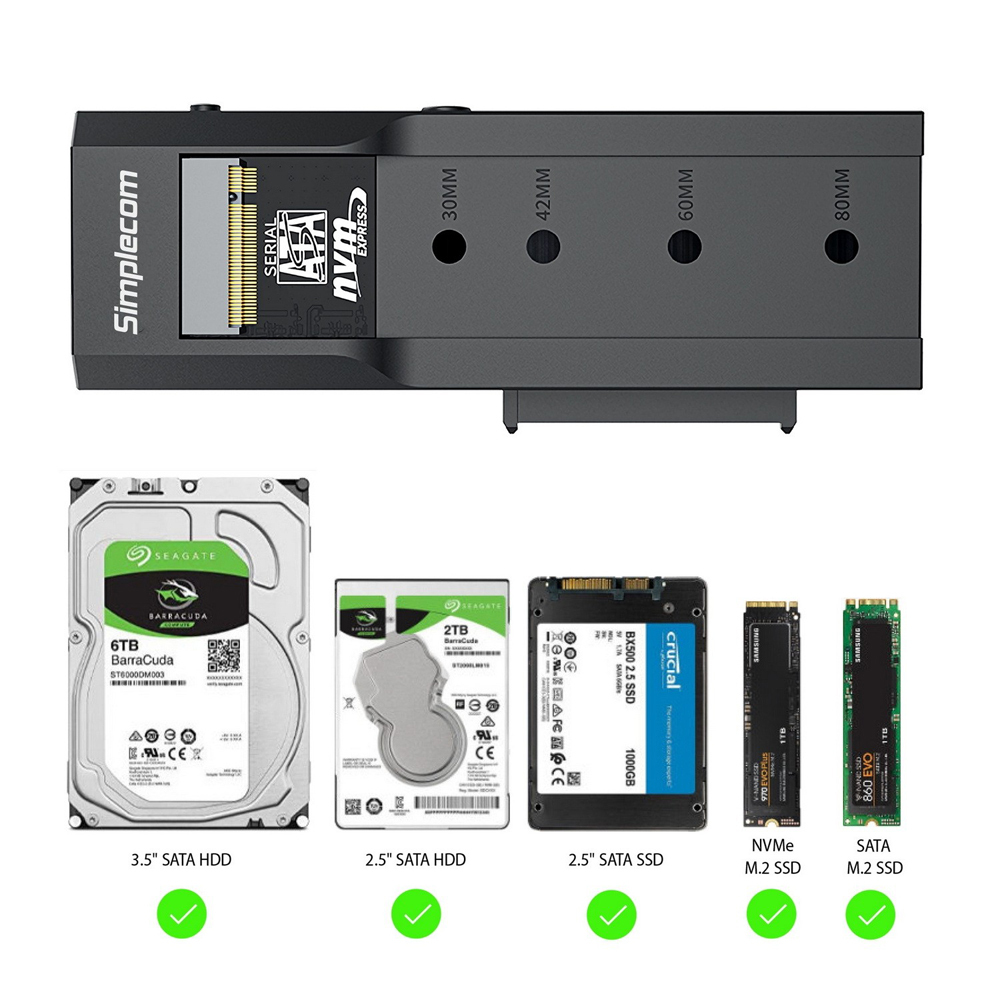

• Supports 2.5" and 3.5" SATA HDD/SDD with SATA I/II/III interface
• Toggle button to quickly switch between SATA and M.2
• USB 3.2 Gen2 interface support up to 10Gbps data transfer rate
• Plug and play, no driver required
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• With external power adapter for 3.5" hard drives
• LED light indicates Power and Activity status

Specifications

• Model: SA536
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: up to 10Gbps
• NVMe Slot Support: NVMe or SATA M.2 SSD (2230 / 2242 / 2260 / 2280)
• SATA Slot Support: 3.5" or 2.5" SATA HDD/SSD
• Main material: ABS Plastic
• Power Input: DC 12V2A
• Dimensions: 108 x 44 x 24mm (LxWxH)
• Weight: 49g (without power adapter)
• Supported Operating Systems: Windows 7 and above, Mac OS 10.8 and above

Package Contents

• 1x USB to SATA and M.2 Adapter
• 1x AC Power Adapter
• 1x USB-C to USB-A Cable
• 1x USB-C to USB-C Cable
• Rubber Standoff for M.2 SSD
• User Manual

Important Note

• External power is Not required when using 2.5" SATA drive or M.2 SSD, they can be powered by USB.
• External power is required for 3.5" SATA HDD, please connect USB cable before connecting power cable.
• SATA and M.2 sockets can't be used simultaneously, toggle button need to be selected to SATA or M.2 mode.
