DESCRIPTION

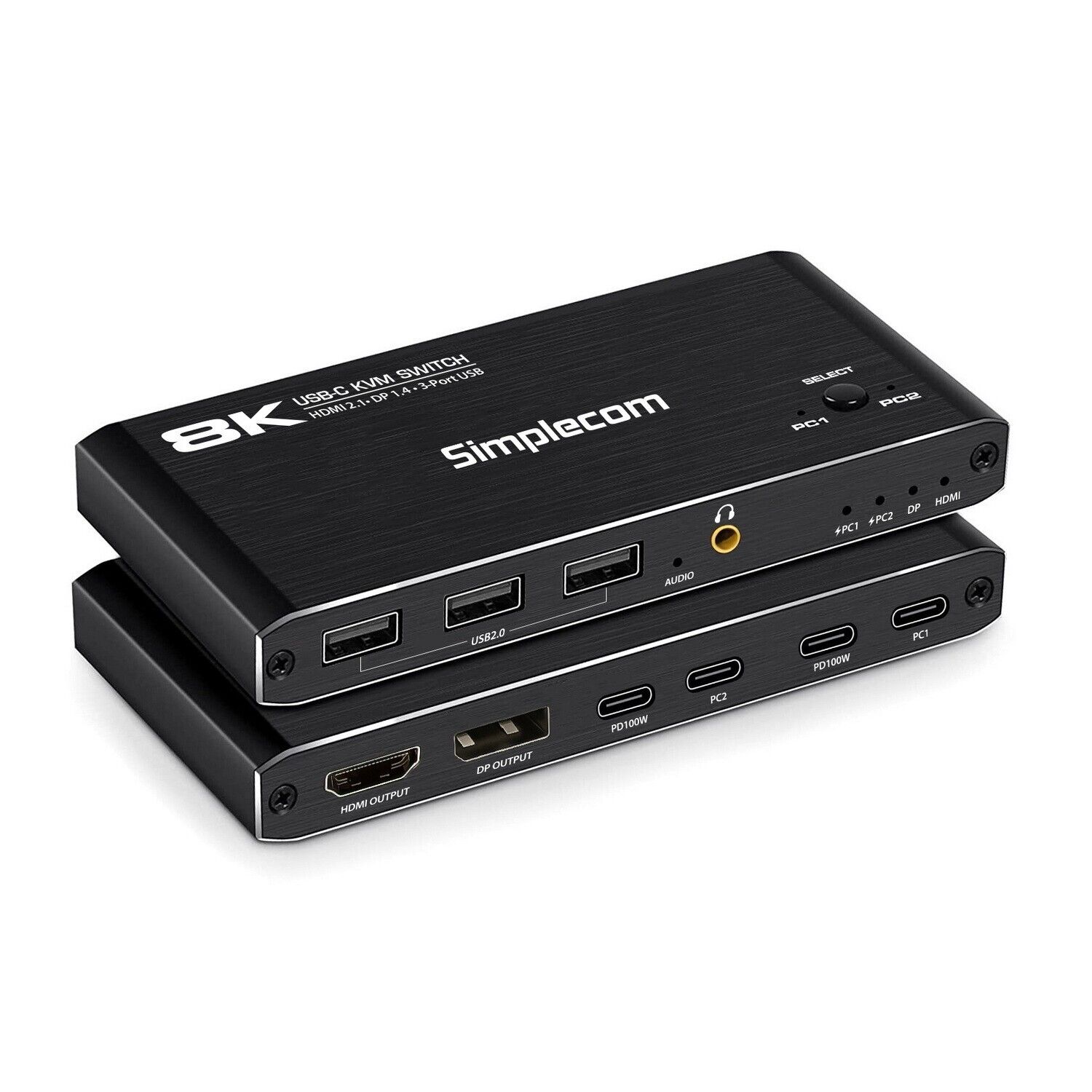

Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet

Features

USB-C KVM switch allows two laptops to share external display and USB devices
Intergraded USB-C docking station, single USB-C cable for Video, Data and PD charging
With both DisplayPort and HDMI output ports for TV or monitors
3-Port USB 2.0 hub for connecting mouse, keyboard, printer and more
3.5mm audio jack for connecting headphones or speakers
Two PD charging ports allow charging for both laptops simultaneously
HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K
Backward compatible with HDMI 2.0 and HDMI 1.4
Easy to use by pressing the toggle button on the KVM switch
Self-powered via connected laptop, no external power required
Plug and play and hot swappable
Durable aluminium alloy casing, also efficiently dissipate heat
LED light indicating the active computer and PD charging

Specifications

Model: KM470
USB Upstream Ports: USB-C x2 (Connect to PC1 and PC2)
USB Downstream Ports: USB 2.0 x3 (Connect USB peripherals)
PD Charing Port: USB-C x2 (up to 100W on each port)
Video Output: HDMI 2.1 x1, DP 1.4 x1
USB Max Bandwidth: HighSpeed 480Mbps
HDMI Max Bandwidth: 48Gbps
DP Max Bandwidth: 32.4Gbps
Video Resolution: 1080p@60/120/165Hz, 4K@60/120/144Hz (DSC), 8K@30/60Hz(DSC)
Audio Output: 3.5mm audio jack (sound output only)
Operating Temperature: 0 to 50°C
Dimension (L x W x H): 13 x 6.3 x 1.6mm
Weight: 109g
Operating System Support: Windows, MacOS, Chrome OS

Package Contents

1x USB-C KVM Switch
2x USB-C to USB-C Cables
System Requirements

Laptop or mobile device with full functional USB-C port that supports DP Alt Mode (DisplayPort Alternate Mode)
Laptop with Thunderbolt 3, Thunderbolt 4, USB4 port
