Simplecom CM423v2 HDMI Audio Extractor

SKU: Leader-CBSI-CM423V2

Simplecom CM423v2 HDMI Audio Extractor

SKU: Leader-CBSI-CM423V2

$35.21
RRP $61.25
SAVE $26.04
  • check icon In Stock
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

DESCRIPTION

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo

Features

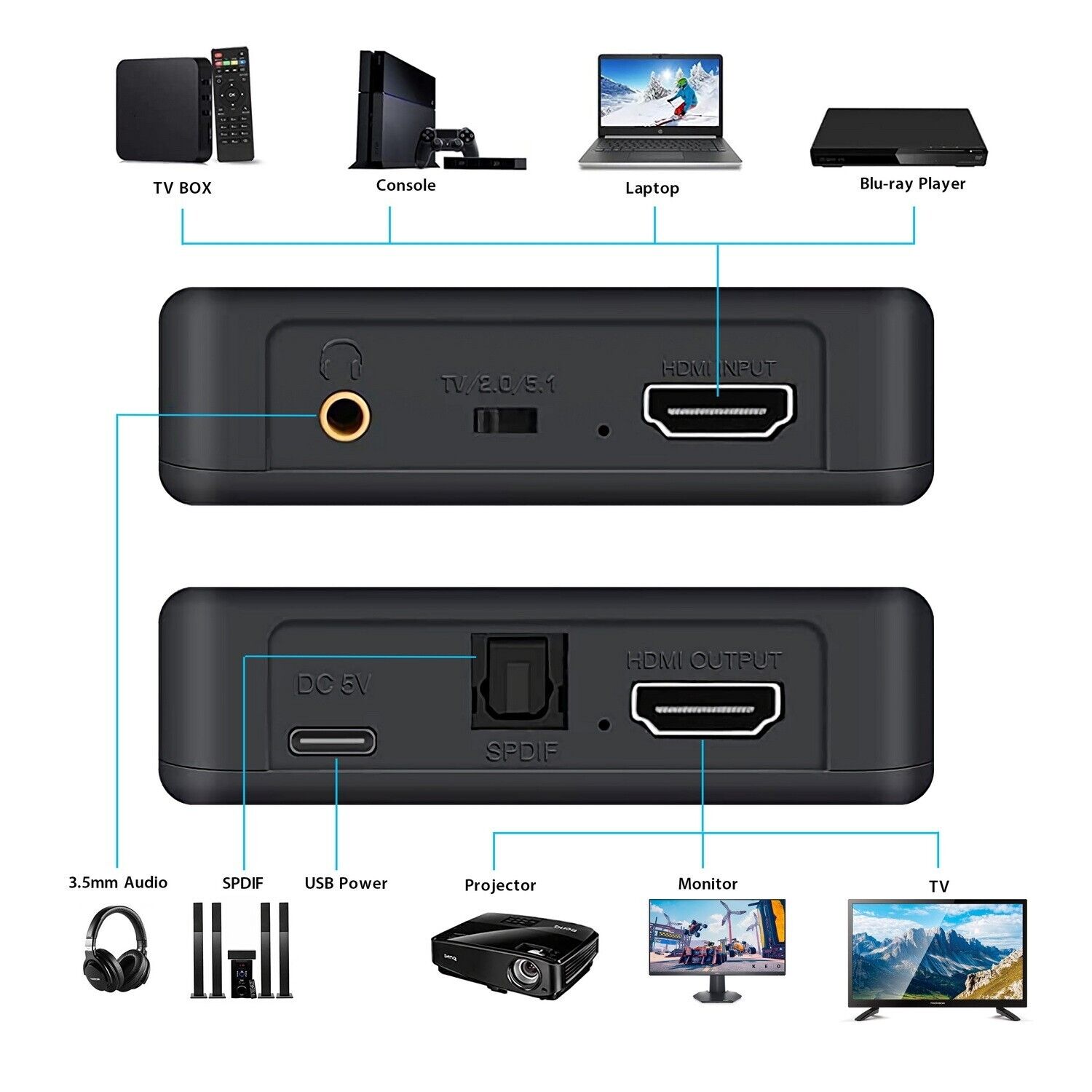

  • Optical SPDIF and 3.5mm audio output extracted from HDMI input
  • One HDMI output for HDMI pass-through
  • Ideal solution for connecting external speaker system with analog or optical input
  • SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio
  • HDMI 1.4b and HDCP 1.4 Compliant
  • Supports HDMI resolution up to 4K Ultra HD
  • Powered by USB, plug and play
  • Supports compressed and uncompressed audio format, such as DTS-HD, Dolby TrueHD, Dolby Digital, PCM, LPCM

Specifications

  • HDMI Version: HDMI 1.4b
  • HDCP Version: HDCP 1.4
  • EDID Support: EDID 1.4
  • Input: 1x HDMI Female
  • Audio Outputs: 1x SPDIF (Optical), and 1 x 3.5mm Stereo Audio (Analog)
  • Video Output: 1x HDMI Female (HDMI pass-through)
  • HDMI Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  • Audio Format Support: DTS-HD, Dolby TrueHD, Dolby AC3, PCM, LPCM, DTS, DSD
  • Max Bandwidth: 400 MHz
  • Max Baud Rate: 10.2 Gbps
  • Input/Output TMDS signal: 0.5~1.5Volts p-p (TTL)
  • Input/Output DDC signal: 5Volts p-p (TTL)
  • Max working current: 350mA
  • Operation Temperature: -10°C ~ 50°C
  • Dimension: 75 x 55 x 25mm (LxWxH)
  • Weight: 43g

Package Contents

  • 1x HDMI Audio Extractor
  • 1x 0.5M HDMI Cable
  • 1x USB Power cable
  • 1x USB Wall Charger
  • 1x User Manual
