Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel KBL&SKY CPU 4x 2.5" HDD/SSD Bay (RAID) 2xLAN HDMI DP VGA RS232 2xDDR4 M.2

SKU: Leader-SYS-XH270

Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel KBL&SKY CPU 4x 2.5" HDD/SSD Bay (RAID) 2xLAN HDMI DP VGA RS232 2xDDR4 M.2

SKU: Leader-SYS-XH270

$604.53
RRP $647.50
SAVE $42.97
  • Only 3 Left!
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

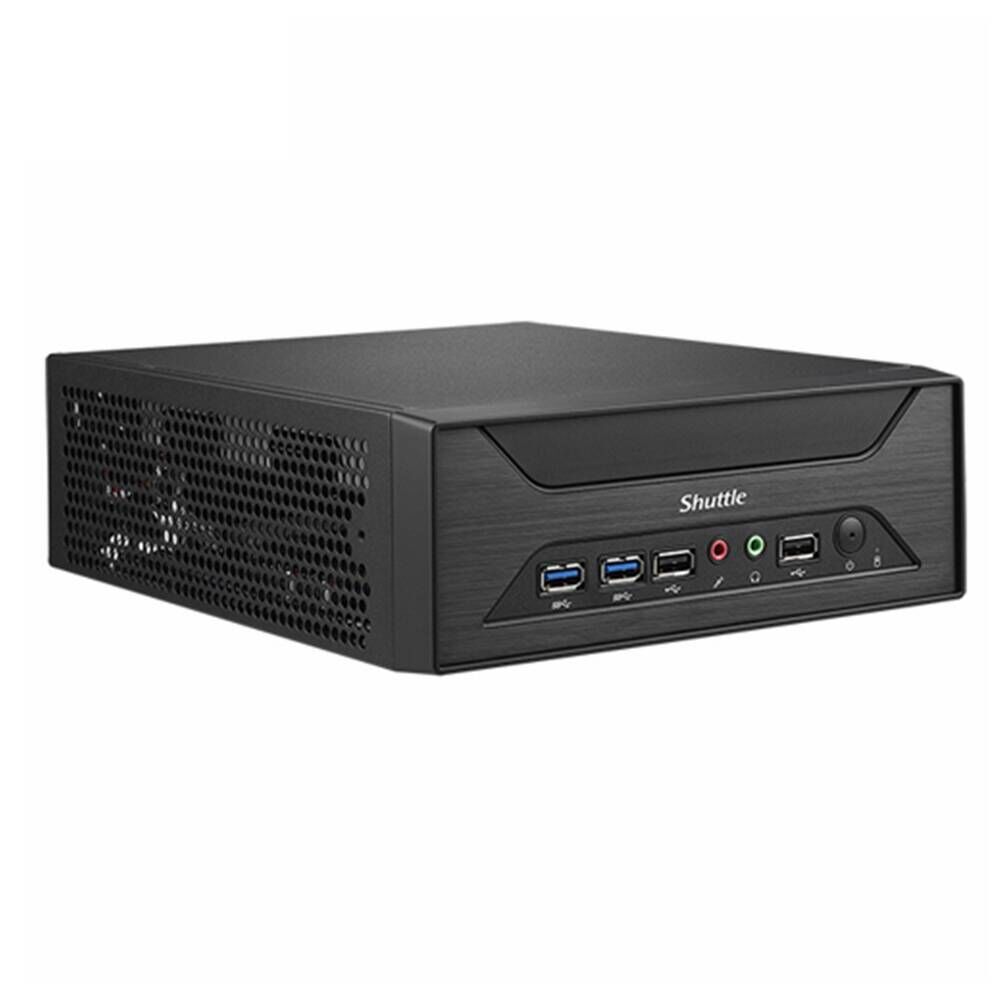

Shuttle XH270 Slim Mini PC 3L Barebone

  • FORM FACTOR Mini-ITX MB
  • 3L chassis
  • PROCESSOR Support Skylake-S/Kabylake-S 65W CPU
  • CHIPSET Intel H270 Express Chipset
  • MEMORY (2)DDR4 SO-DIMM 2133/2400MHz support, dual channel up to 32GB (16GB*2)
  • VIDEO OUTPUT (1)HDMI+(1)DisplayPort+(1)VGA support triple independent display 4K playback
  • Integrated in CPU
  • AUDIO Realtek ALC662 5.1 channel High Definition audio
  • ETHERNET Intel I211*2 10Mb/100Mb/1Gb/s operation
    Support Wake-on-LAN function
    Support Teaming feature
  • STORAGE INTERFACE SATA 6.0Gb/s interface
  • ONBOARD CONNECTORS (1) 4pin fan connector
    (4) SATA connector w/power
    (2) 2x5 pin USB2.0 header
    (1) Front audio header
    (1) Front USB2.0 header
    (1) Front USB3.0 header
    (1) Auto power on
    (1) RS232 header
  • FRONT PANEL
    (1) Power Button
    (1) Power Led
    (1) HDD Led
    (2) USB2.0 port
    (2) USB3.0 port
    (1)MIC-In
    (1)Earphone-Out
  • BACK PANEL (2) RJ45 Gigabit LAN port
    (1) DisplayPort
    (1) HDMI
    (1) VGA
    (2) USB2.0 port
    (2) USB3.0 port
    (1) RS232
    (1) Line-in port
    (1) Line out port
    (1) MIC-in port
    (1) Clear CMOS button
    (1) DC in
    (1)Kensington lock
    (2)Wireless Antenna fixture(optional)
  • DRIVE BAYS Support 4* 2.5” HDD/SSD
  • DIMENSIONS 240(L) x 200(W) x 72(H) mm
  • POWER 120W Power Adapter
    Input:100- 240V AC
    Output: 19V 6.32A DC
  • ACCESSORIES
    XPC Multilanguage Quick User Guide
    XPC DVD Driver
    Thermal Grease
    120W adapter
    2.5 HDD rack*4
    Power cord
    HDD Screw pack
  • EXPANSION SLOT (1) M.2 2280 Type M (PCIe x4,SATA 6GB/s)
    (1) M.2 2230 Type A,E (PCIe x1,USB2.0)
    OS SUPPORT Windows 7(SKL-S only)
  • Windows 10: Linux
