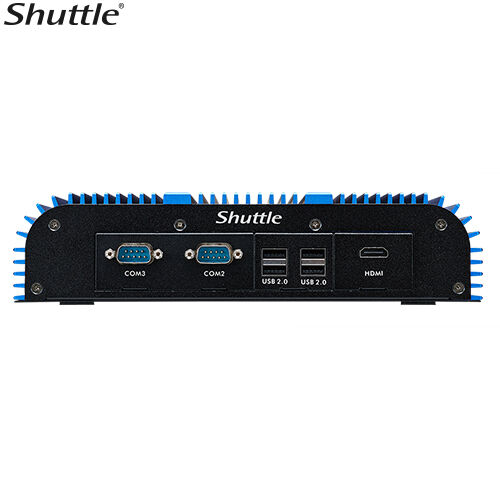

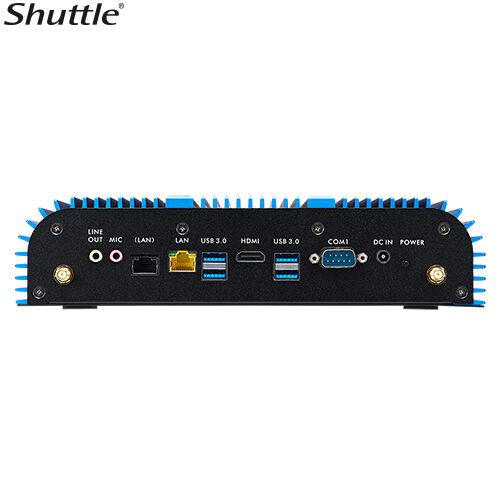

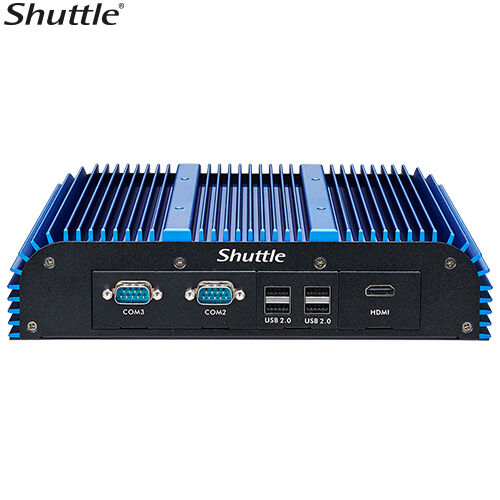

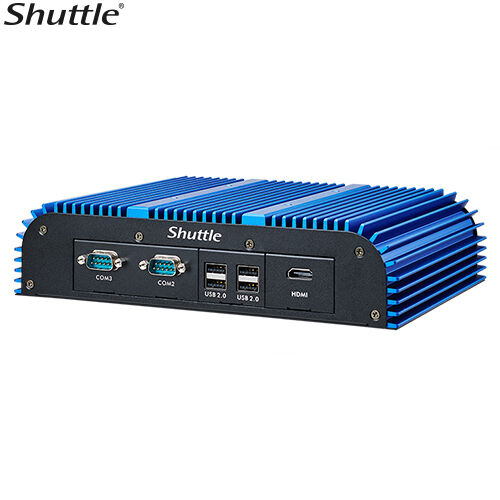

Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS

SKU: Leader-SYS-BPCWL02

Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS

SKU: Leader-SYS-BPCWL02

$1,672.76
RRP $1,866.25
SAVE $193.49
  • Only 1 Left!
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter

Processor

  • 8th Gen. Intel® Whiskey Lake-U Processors

Memory

  • 2 x 260 pin SO-DIMM up to 64GB Dual Channel DDR4 2666MHz

BIOS

  • AMI UEFI 64 Mbit

Graphics - Display Interface

  • 2 x HDMI 1.4b: 4096 x 2160@30Hz - Supports three displays

Internal Storage

  • 1 x M.2 2280 M key (PCIe NVMe / SATA)

Audio Codec

  • Realtek ALC662 2-channel

Ethernet

  • 2 x Intel® Gigabit LAN

WLAN

  • Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option)
  • Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
  • External antenna (Dipole) x2 (Option)

LAN

  • 2 x RJ-45 (10/100/1000Mbps)

Serial Ports

  • 1 x RS-232 (DB-9)
  • 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board)

USB

  • 4 x USB3.2 Gen 1 (Type A)
  • 4 x USB2.0

Audio

  • 1 x Line-out
  • 1 x Mic-in

Power Type

  • 19V (without wide range board)
  • With wide range board, MB support 9-36V DC-in

Adapter

  • 19V/4.74A 90W external adapter

OS Support

  • Windows 10/11 Embedded 64bit
  • Linux 64bit

Mount

  • Mounting VESA Mount 75 x 75 mm
  • Ear Mount 256 x 100 mm
  • Din Rail

Dimension (WxHxD)

  • 245 x 57 x 169mm
  • Weight 2.85 kg
