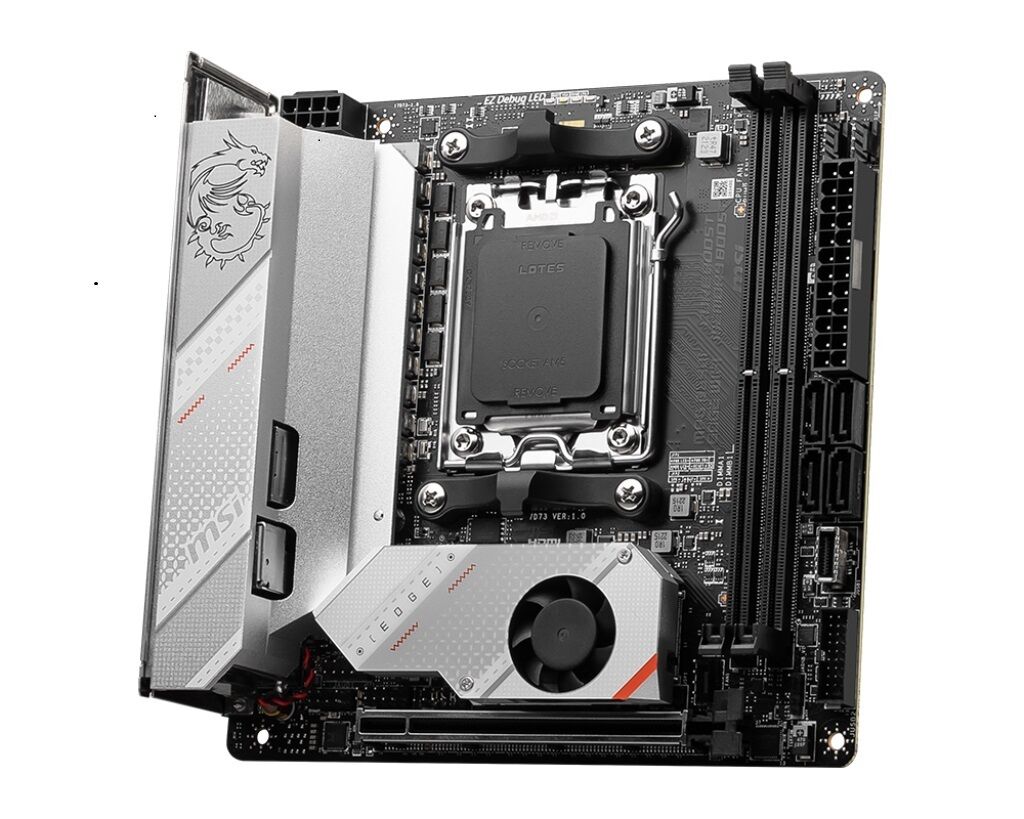

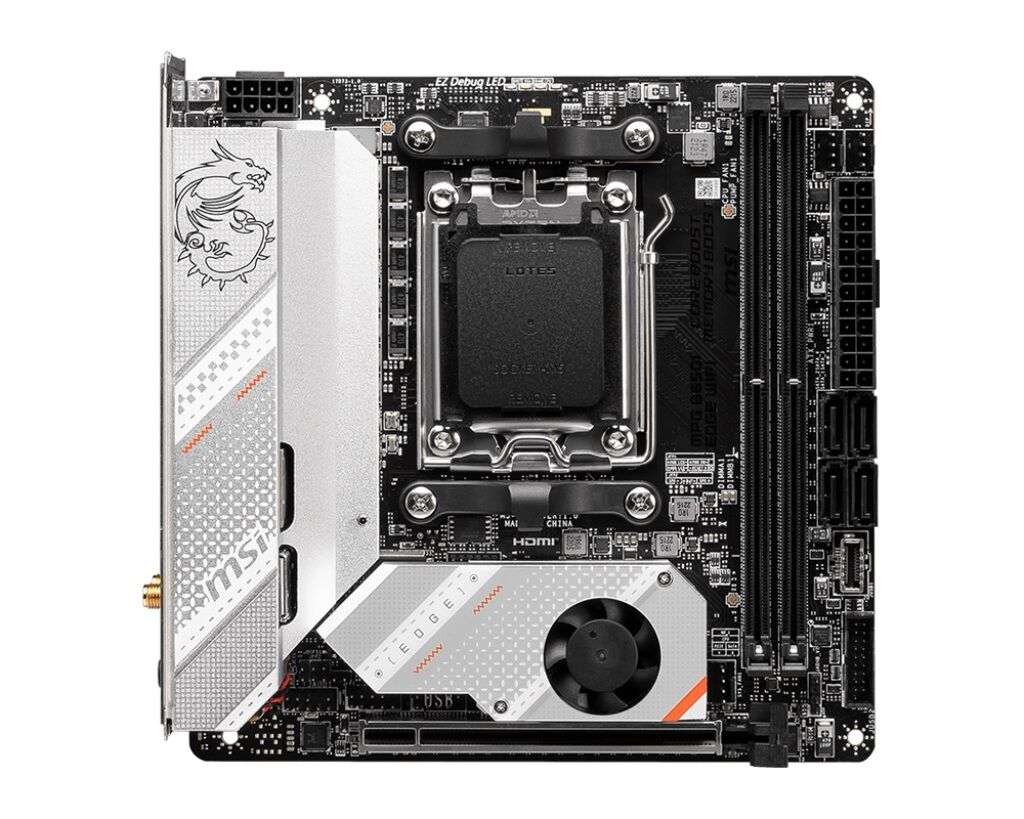

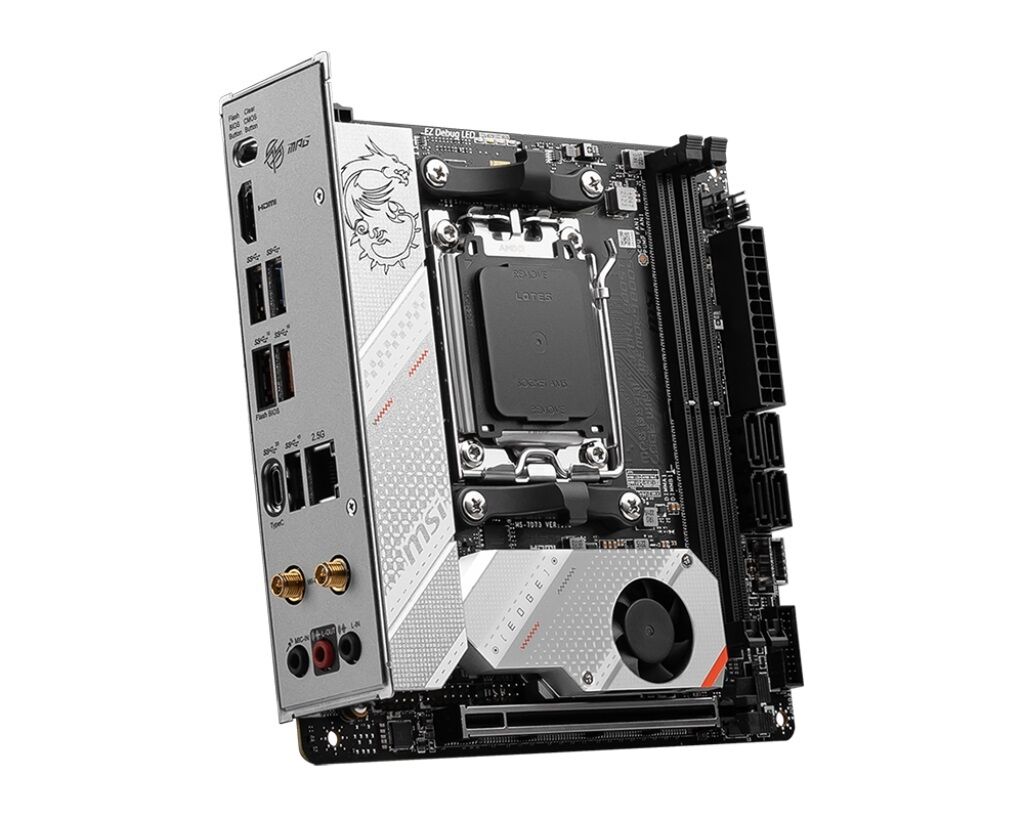

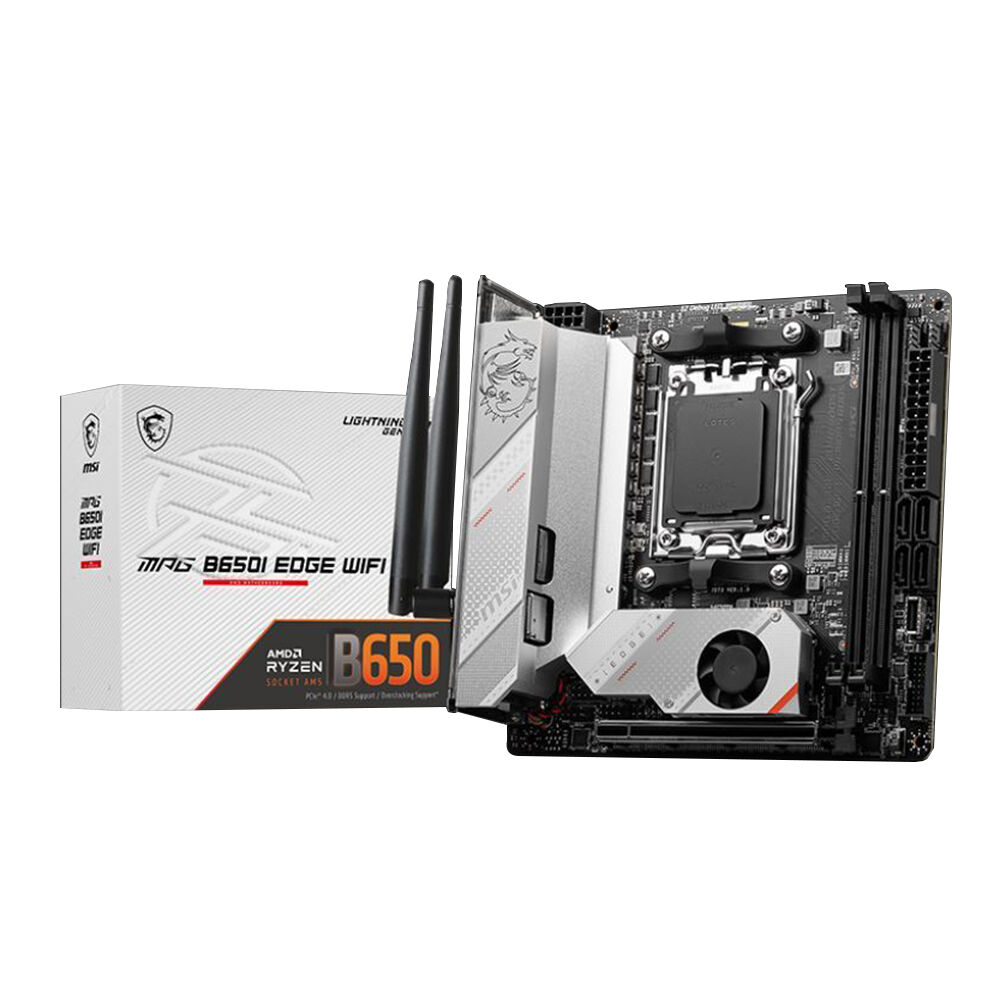

MSI MPG B650I EDGE WIFI AMD AM5 M-ITX Motherboard, 2x DDR5 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 2x USB2.0, 5x USB 3.2, 1x USB-C

SKU: Leader-MBM-B650IEDGEWIFI

MSI MPG B650I EDGE WIFI AMD AM5 M-ITX Motherboard, 2x DDR5 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 2x USB2.0, 5x USB 3.2, 1x USB-C

SKU: Leader-MBM-B650IEDGEWIFI

$513.06
RRP $520.00
SAVE $6.94
  • Only 2 Left!
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

MSI MPG B650I EDGE WIFI AMD AM5 M-ITX Motherboard, 2x DDR5 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 2x USB2.0, 5x USB 3.2, 1x USB-C

CHIPSET AMD B650

CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

MEMORY 2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz

Support Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT 1x PCI-E x16 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
MULTI-GPU Supports AMD MULTI-GPU

STORAGE 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port
RAID Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB 2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN

PCB DIMENSION Mini-ITX
170mmx170mm
