DESCRIPTION

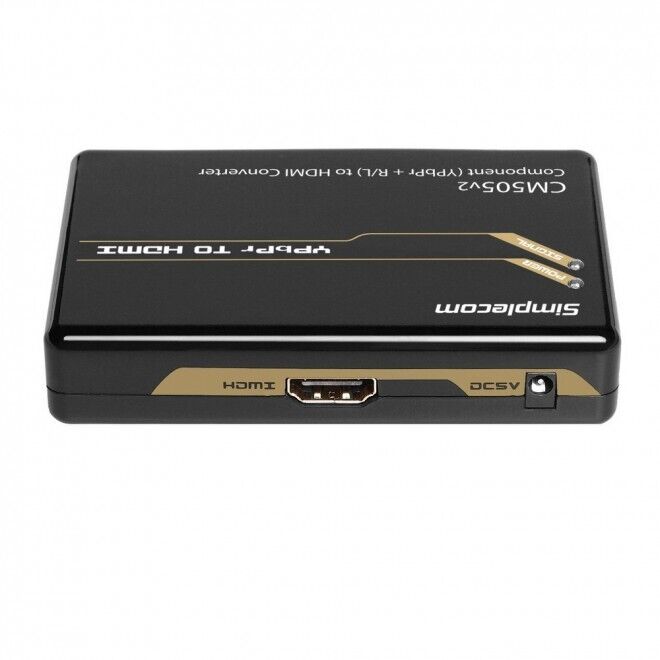

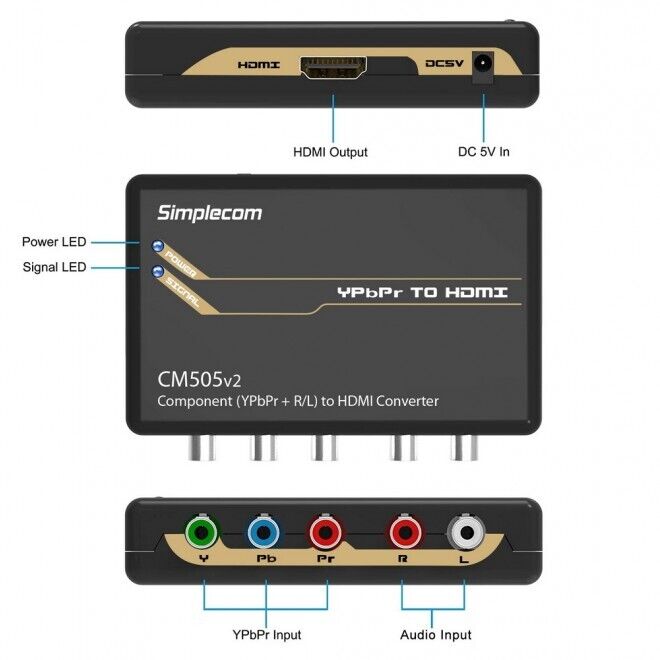

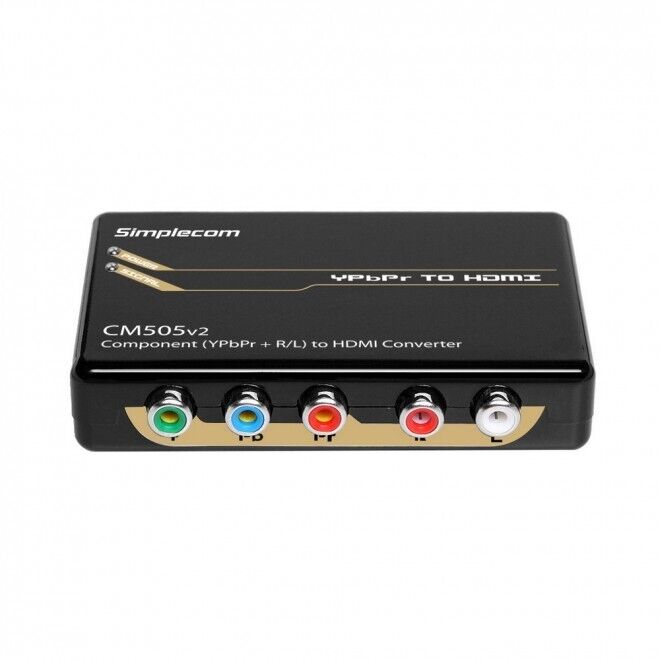

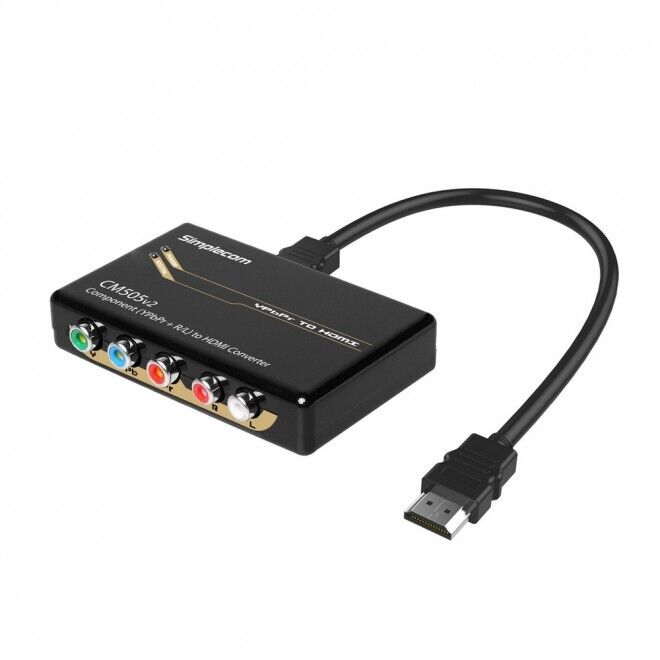

(LS)Simplecom CM505v2 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p(LS)

It can be applied for most component video devices, such as legacy STB, DVD players, game consoles, and more. Easy to use, plug and play, it supports 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth ensure no distortion of video or audio signal, and no lag in signal transmission.

Feature

• Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
• Powered by USB, plug into either USB wall adapter or a nearby USB port on PC or TV
• Supports full range of component video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
• Support 8bit per channel (24bit all channel) deep color
• Support uncompressed 2 channel audio such as LPCM
• Ideal for legacy component video devices such as STB, DVD players, game consoles

Specifications

• Input: Component (YPbPr) + R/L Stereo
• Output: HDMI
• DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
• Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
• Vertical Frequency Range: 50/60Hz
• Interlaced Resolutions (50&60Hz): 480i,576i,1080i
• Progressive Resolutions (50&60Hz): 430p,576p,720p,1080p
• Operating Temperature: 0°C to 70°C
• Operating Humidity: 10% to 85% RH
• Storage Temperature: -10°C to +80°C
• Storage Humidity: 5% to 90% RH
• Power Supply: USB
• Power consumption (MAX): 5W

Package Contents

• 1x Component to HDMI converter
• 1x HDMI Lead
• 1x USB Power cable
• 1x USB Wall Adapter

Important Note

• This converter is Component to HDMI one way only, doesn't work in reverse way
• This adapter converts video format only, and doesn't change the resolution, the display screen has to support same resolut
