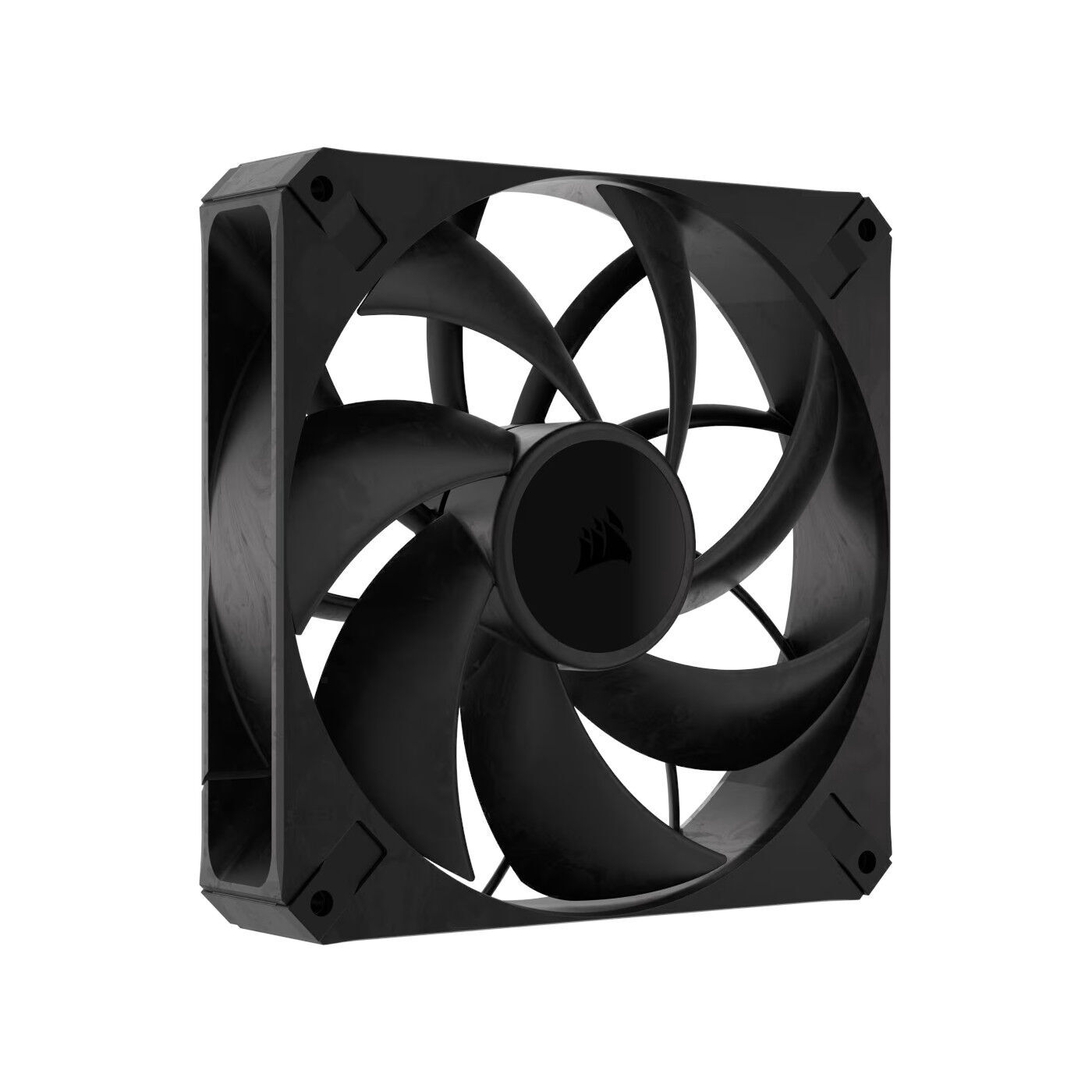

CORSAIR RS140 MAX

30mm-THICK FANS

PUSH IT TO THE MAX


PERFORMANCE WHERE IT MATTERS

GREATER THICKNESS, GREATER PERFORMANCE

At 30mm, RS MAX fans are 17% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.


AIRFLOW

A larger fan blade with an optimised blade shape pushes a greater volume of air through your PC case.


STATIC PRESSURE

High static pressure makes the RS MAX ideal for radiator mounting, as it can push air more effectively through dense obstructions.


LOWER NOISE

Can spin at a lower RPM to reach the same airflow as a thinner fan, reducing the fan noise generated by your PC.


GLASS FIBRE REINFORCED LCP

Constructed from glass fibre-reinforced liquid crystal polymer, RS MAX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.

CORSAIR AIRGUIDE TECHNOLOGY

Anti-vortex stator vanes behind the fan blade focus airflow into a tight cone for more effective cooling as a case fan or better heat dissipation as a radiator fan.


CORSAIR MAGNETIC DOME BEARING

This improved bearing minimises friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.


STRENGTH IN NUMBERS

RIGOROUSLY TESTED AND PERFECTED FOR PERFORMANCE

Extensive testing bears out the RS MAX Series’ exceptional cooling performance, in both case fan and radiator fan applications. Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.

Specifications

Weight

0.35 Kg

Fan Airflow

27.5 - 104 CFM

Flow Type

Static Pressure

LINK Compatibility

None

Fan Static Pressure

0.2 - 2.4 mm-H2O

Speed

1600 RPM

Sound Level

31 dBA

PWM Control

Yes

Power Draw

0.22A

Package Quantity

1

Fan Size

140mm x 30mm

Fan Warranty

5 Year

Package Contents

• 1x CORSAIR RS140 MAX Fan
• 4x QuikTurn Screws
• 4x Long Radiator Screws
• 4x Long Hydro X Screws
