DESCRIPTION

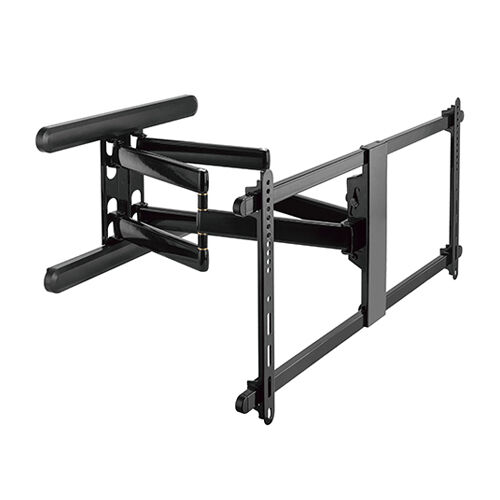

Brateck Premium Aluminum Full-Motion TV Wall Mount For 43"-90" Flat panel TVs up to 70KG

FEATURES

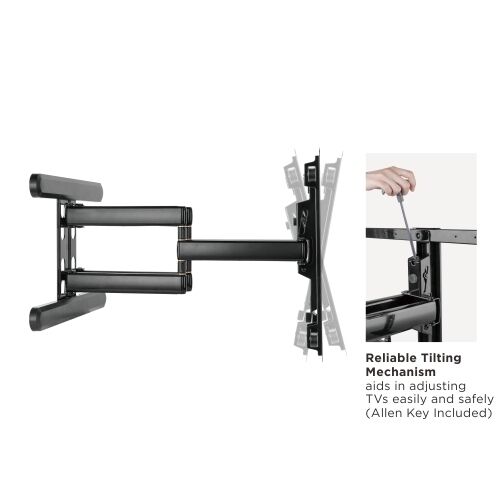

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Built-In Copper Bushing：for smoother movements
●Magnetic Contact：easily attach the decorative covers

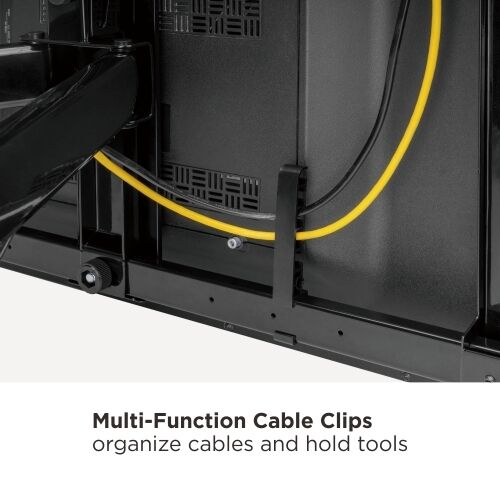

●Cable Clip: routes cables to reduce clutter for a clean look and more organized place

SPECIFICATIONS

Product Category: Full-motion TV Wall Mount
Rank: Premium
Material: Aluminum,Steel,Plastic
Metal Sheet Thickness: VESA Panel THK=1.5mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (VESA Panel THK=0.059" cold-rolled sheet,VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Surface Finish: Powder Coating,Electroplating
Color: Gloss Black,Fine Texture White
Color(accessory): Gloss Black,Fine Texture White

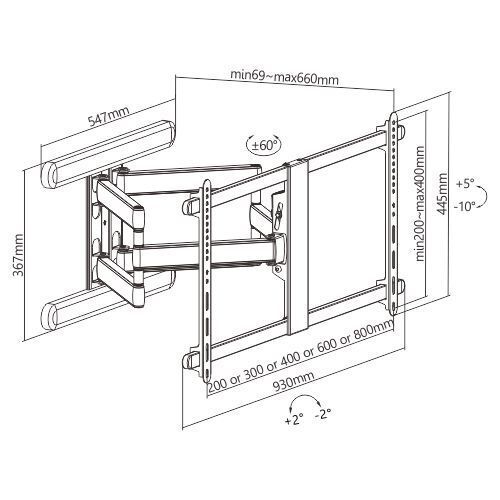

Dimensions: 660x930x445mm (26"x36.6"x17.5")
Fit Screen Size: 43"-90"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,400x400,600x400,800x400
Max. Mounting Hole: 800x407
Weight Capacity: 70kg (154lbs)
Strength Tested: 4 Times Approved
Profile: 69~660mm (2.7"~26")
Tilt Range: +5°~-10°
Swivel Range: +60°~-60°
Screen Level: +2°~-2°
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: Yes
Cable Management: Yes
Anti-theft: No
Bubble Level: No
Accessory Kit Package: Compartment Polybag
Silk Screen: Can be silkscreen printed
