DESCRIPTION

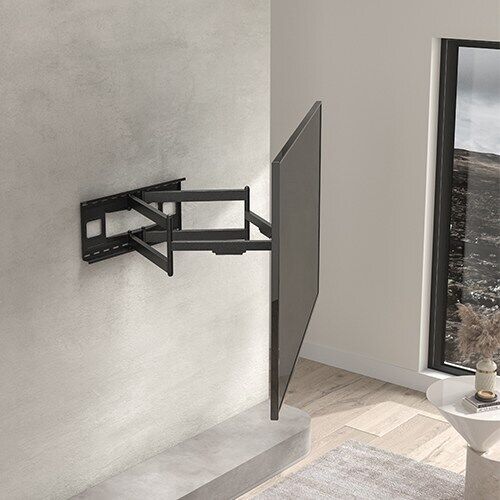

Featuring a 1044mm (41.1") arm extension and 80kg (176lbs) weight capacity, the LPA49-486XLD is a great fit for either home or commercial installations. Offering a maximum viewing range for larger, heavier TVs, featuring toolless tilting, ample swivel motion and long extension arms for the most optimal viewing angles. Cable management along the arm keeps everything organized for a cleaner looking appearance. Installers will love the quick-release mechanism, allowing the TV to be installed or removed in record time.

FEATURES

●Extending Arm: provides a wide range of viewing angles
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Free-Tilting Design: for multiple monitor viewing angles
●Quick-Release Latch: locks/unlocks the display in place
●Cable Management: elegantly hides any cables that are attached to displays

SPECIFICATIONS

Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel
Pipe Size: 40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 1044x885x430mm (41.1"x34.8"x16.9")
Fit Screen Size: 43"-90"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400
Max. VESA: 800x400
Weight Capacity: 80kg (176lbs)
Strength Tested: 3 Times Approved
Profile: 69~1044mm (2.7"~41.1")
Tilt Range: +5°~-15°
Swivel Range: +60°~-60°
Screen Level: +3°~-3°
Screen Freely Tilting: Yes
Installation: Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: Yes
