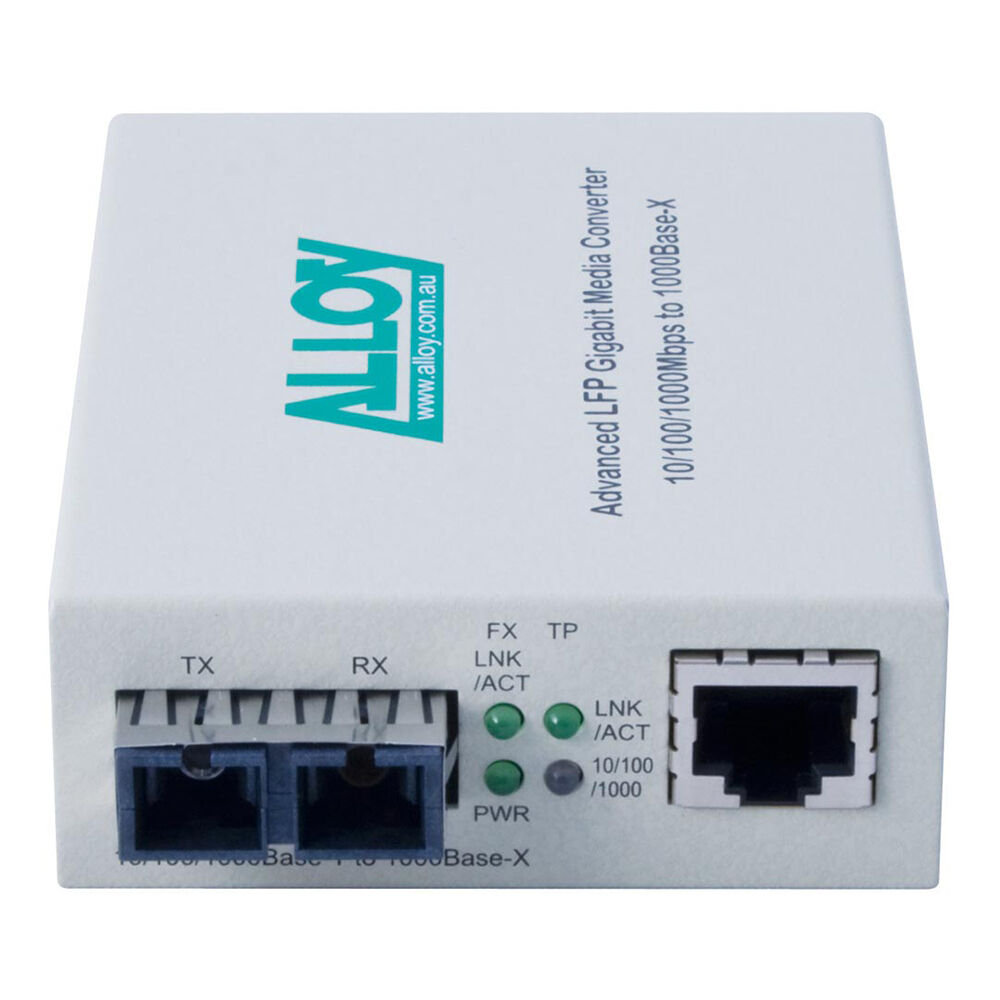

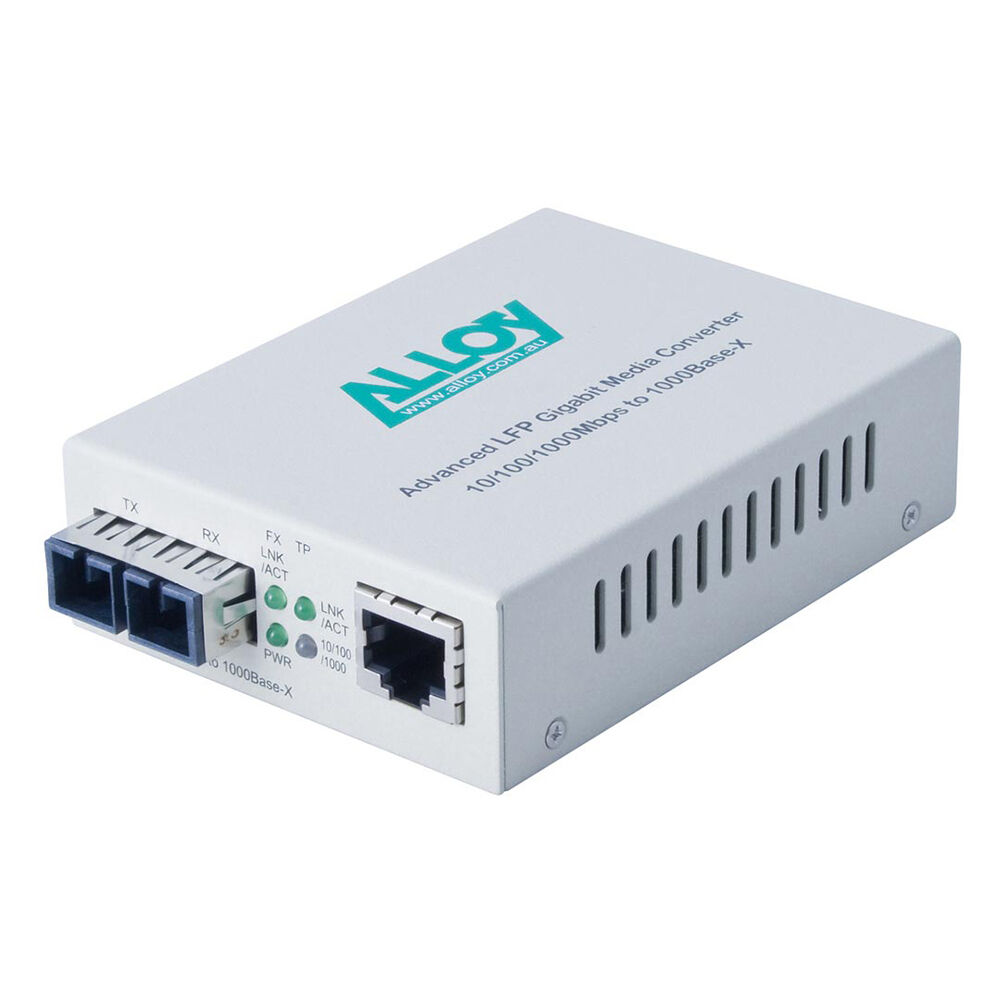

The GCR2000SC.10, a GCR2000 Series Gigabit Ethernet Media Converter, can be used 'Standalone' or installed in an Alloy DCR12 Series Media Converter Chassis, and has 1000Base-T and a 1000Base-LX singlemode SC ports. Fibre cable range is up to 10Km.

The GCR2000SC.10 is a dual purpose Gigabit Ethernet Media Converter. It can be used as a standalone discrete device, or can be installed as a Media Converter Module into any Alloy 12-slot Media Converter Chassis. Whichever mode the GCR2000SC.10 is used in, it is a flexible solution ideal for a wide variety of media conversion applications in Gigabit Ethernet network environments. With dual 1000Base-T auto-sensing 10/100/1000Mbps RJ-45 and 1000Base-LX SC terminated singlemode ports, the GCR2000SC.10 is an ideal solution for UTP/STP copper to Gigabit Ethernet singlemode fibre media conversion tasks. The devices IEEE 802.3ab compliant RJ-45 port supports Gigabit, Fast Ethernet and Ethernet UTP/STP links at up to a 100 metres range, and the 1000Base-LX port has a maximum fibre cable range of up to 10 kilometres.

Features

• GCR2000SC.10 model - Gigabit copper to 1000Base-LX singlemode fibre media conversion
• Dual Purpose GCR2000 Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
• GCR2000 Series: Gigabit Ethernet copper to multimode, singlemode, WDM and SFP Media Conversion solutions
• LC and SC fibre connectors supported on individual GCR2000 Series models
• Up to 50 kilometres fibre range supported with fixed port MGCR2000 Series Converters
• Up to 120 kilometres fibre range supported by MGCR2000SFP Converter
• Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
• Supports Forced and Far-end Fault mode Link Fault Passthrough (LFP)

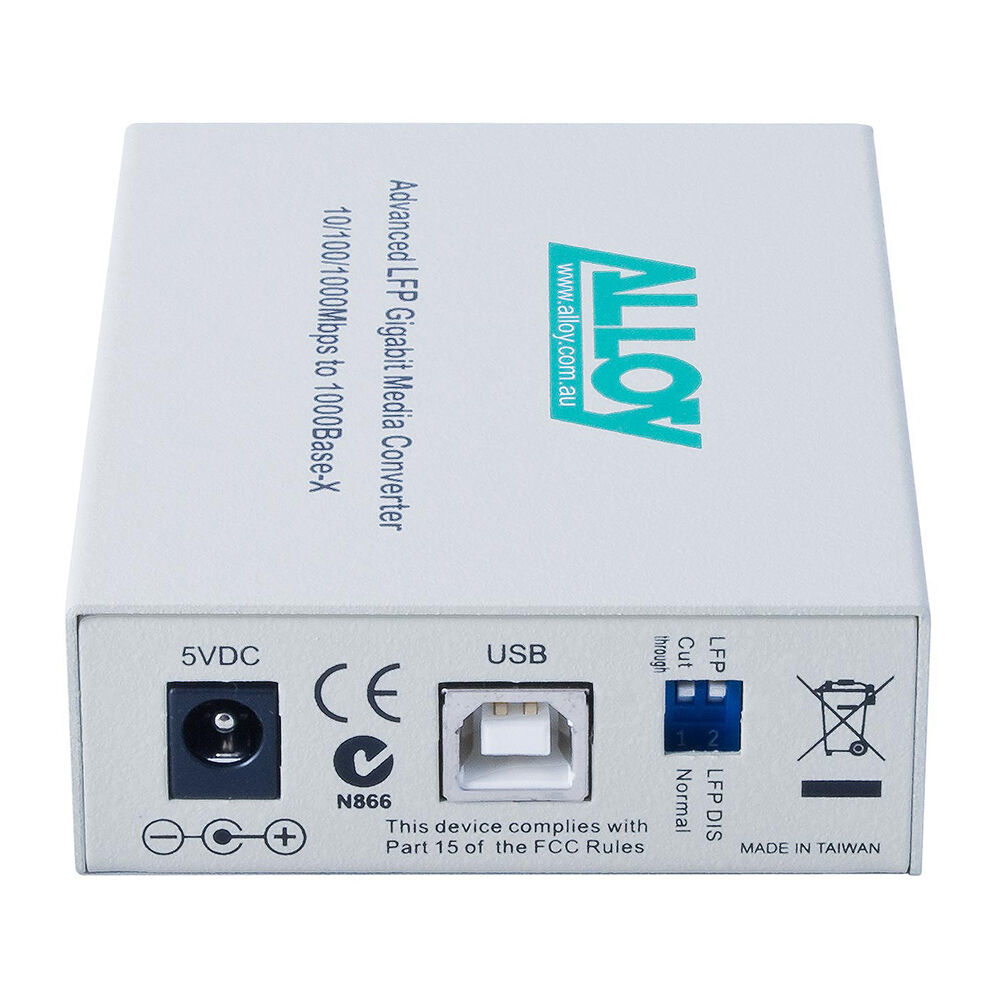

• All GCR2000 models powered by external plugpack or via USB connection
• Compact, rugged all-metal case
