Alloy FCR200SC.20 10/100Base-TX to 100Base-FX Single Mode Fibre (SC) Converter with LFP via FEF or FM. 20Km

SKU: Leader-NHA-FCR200SC.20

Alloy FCR200SC.20 10/100Base-TX to 100Base-FX Single Mode Fibre (SC) Converter with LFP via FEF or FM. 20Km

SKU: Leader-NHA-FCR200SC.20

$314.75
RRP $385.00
SAVE $70.25
  • Sold Out
Quantity
-
+

Calculate shipping



Tracking Parcel Post - $9.95
5-7 Business days

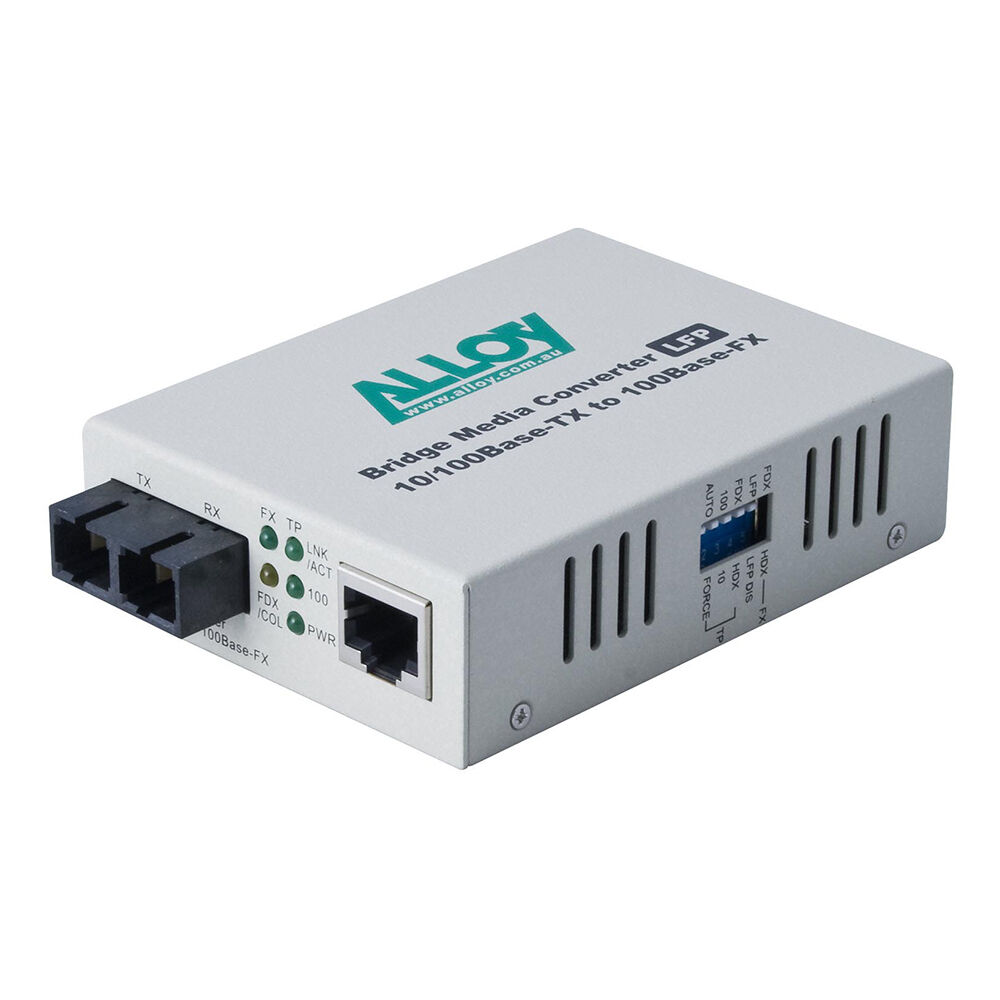

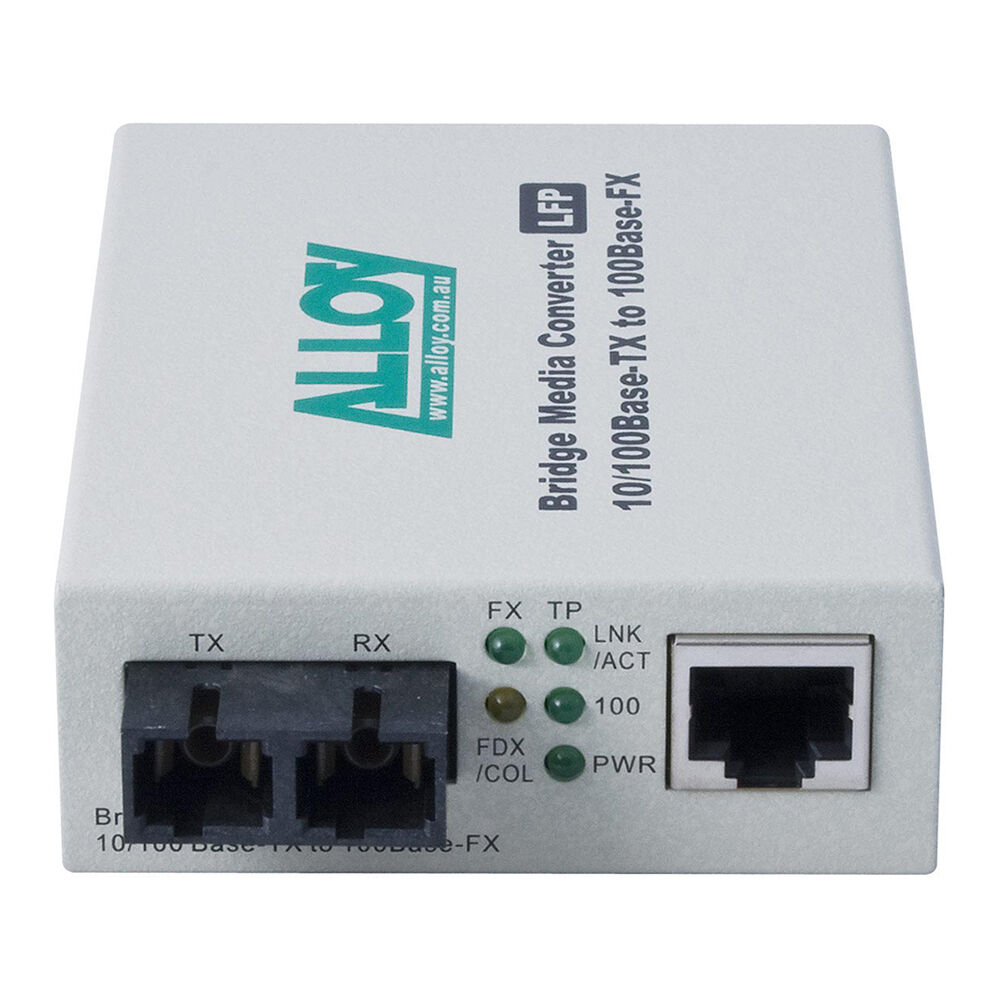

Alloy FCR200SC.20 100Mbps Standalone/Rackmount Media Converter

The FCR200SC.20, a FCR200 Series Fast Ethernet Media Converter, can be used 'Standalone' or installed in an Alloy DCR12 Series Media Converter Chassis, and has a 100Base-TX and a 100Base-FX singlemode SC port. Fibre cable range is up to 20Km.

The FCR200SC.20 is a dual purpose Fast Ethernet Media Converter. It can be used as a standalone discrete device, or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Chassis. Whichever mode the FCR200SC.20 is used in, it is a flexible solution ideal for a wide variety of media conversion applications in Fast Ethernet network environments. With dual 100Base-TX auto-sensing 10/100Mbps RJ-45 and 100Base-FX SC terminated singlemode ports utilising the 1300nm wavelength (1550nm models also available), the FCR200SC.20 is an ideal solution for UTP/STP copper to Fast Ethernet singlemode fibre media conversion tasks. The RJ-45 port supports Fast Ethernet and Ethernet UTP/STP links at up to a 100 metres range, and the 100Base-FX port has a maximum fibre cable range of up to 20 kilometres.

Features:

  • FCR200SC.20 model: Fast Ethernet copper to 100Base-FX 1300nm singlemode fibre media conversion - 20Km range
  • Dual Purpose FCR200 Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
  • FCR200 Series: Fast Ethernet copper to multimode, singlemode and WDM Media Conversion solutions
  • FCR200 Series: models with copper to 1300nm and 1550nm singlemode fibre support
  • LC, SC, ST, and MT-RJ fibre connectors supported on individual FCR200 Series models
  • Up to 100 kilometres fibre range supported with FCR200 Series Converters
  • Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
  • Supports Forced and Far-end Fault mode Link Fault Passthrough (LFP)

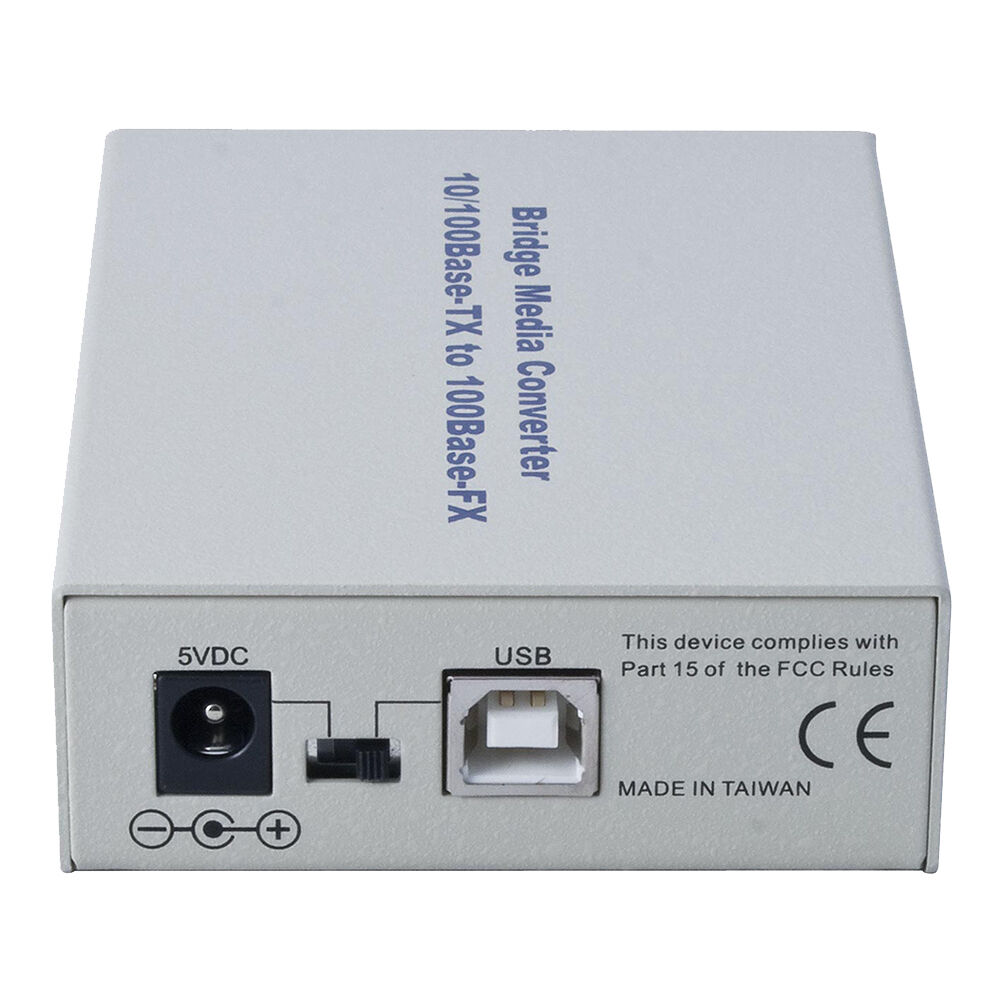

  • All FCR200 models powered by external plugpack or via USB connection
  • Compact, rugged all-metal case
